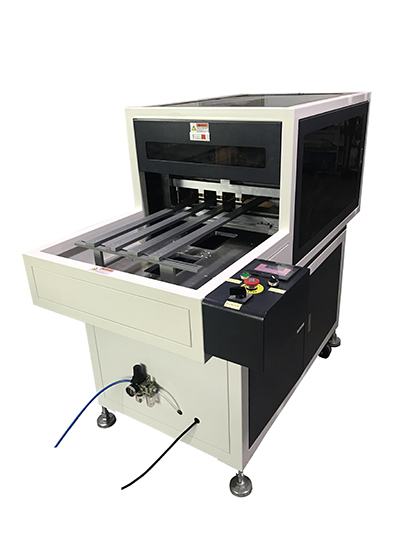

SMNCM-1C Full Automatic RFID Contactless Smart Card Hole Punching Machine has 3units or 8units punching heads, it's used for punching holes on PVC,PETG,ABS,Teslin,Polycarbonate materials before making module and antenna.
The module is embedded inside of plastic card. Because of the certain shape of module, we should punch
holes with different dimension in layers, this can make sure layers are flat.
1. Two kinds of different dimension tools(MOA2, MOA4, MOA6, MOA8) are used for punching in layers.
2. The two tools can be easily exchanged during production.
3. It is easy to load plastic sheet and easy to adjust punching position.
4. Controlled by PLC, adjust setting by touch screen if you use different formats for inlay making, automatic feed sheet for holes punching and automatic back after punching.
| Sheet Size | 2*5, 3*7, 3*8 , 4*8, 5*5, 6*8, 7*8 or other size in your order |
| Control Method | PLC, Touch Screen, Servo System |
| Working Efficiency | 9000-20000 cards per hour 3-8units punching tools can be adjusted of position |
| Voltage Input | 220V 50/60Hz 10A |
| Power | 1KW |
| Air Supply | 0.6MPa 50Liter/minute |
| Servo Precision | X and Y = 0.0125mm |
| Tolerance | 0.01mm |
| Packing Size | 1550mm*700mm*1350mm |
| Net/Gross Weight | 250KGS/300KGS |
