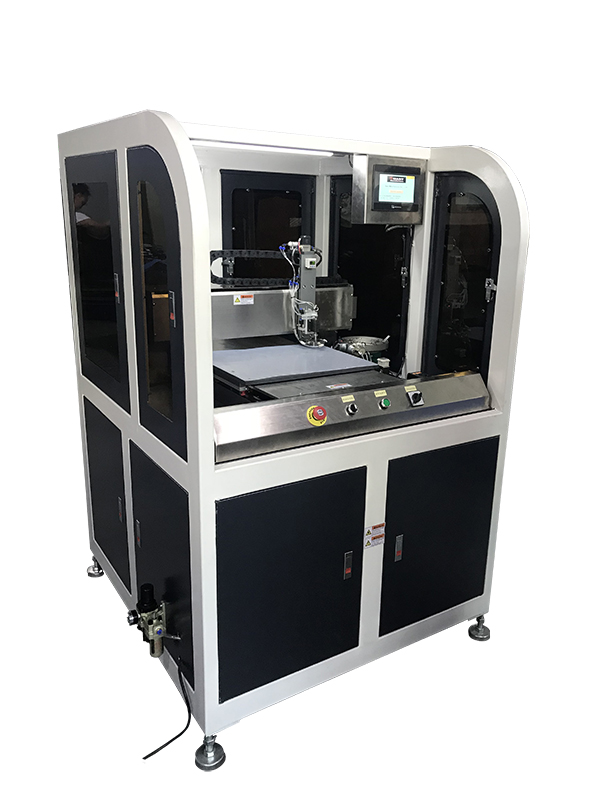

SMNCM-3C RFID Contactless Smart Card Chip Module Placing Machine is full automatic load the modules one by one and place the chip modules in holes on sheet.
1.Put the punched chip/COB modules in vibrating plate, principle of vibration, chips will be piece by piece in order. 2.Manipulator pick up chips for placing in sheet, working by servo system.
3.There are several programs for different sizes of sheets.
4.Our machine can be one working table and two working tables.
5.Machine can include chip tape punching system, automatic punch chips from tape and check the quality, good chip for placing and automatic reject bad chip.
SMNCM-3C Contactless Smart Card Module Placing Machine is full automatic load the modules one by one and stick the modules in holes on sheet. Also machine can fix module punching system, punch modules from tape and automatic reject bad module, just place good module for antenna.
Placing Materials | ABS, PVC, PET, PETG, Teslin, Polycarbonate or other mixed plastic |
Placing Layouts | any layout like 2*5, 3*8, 3*9, 3*10, 4*8, 4*9, 4*10, 5*5, 6*8, 7*8 |
Embedding Head
Working Table | 1-2 heads 1-2 tables |
Placing Sizes | 1 sheet per table A4, A3, A3+, A2 |
Control Method | PLC, Touch Sceen, Servo System |
Air Supply | 0.6MPa 50Liter/minute |
Servo Precision | X and Y =0.125mm |
Working Efficiency | 2500-6000pcs per hour |
Voltage | 220V or 380V 50/60Hz |
Power | 3KW |
Packing Size | 1850mm*960mm*1750mm |
Net/Gross Weight | 800KGS/900KGS |
