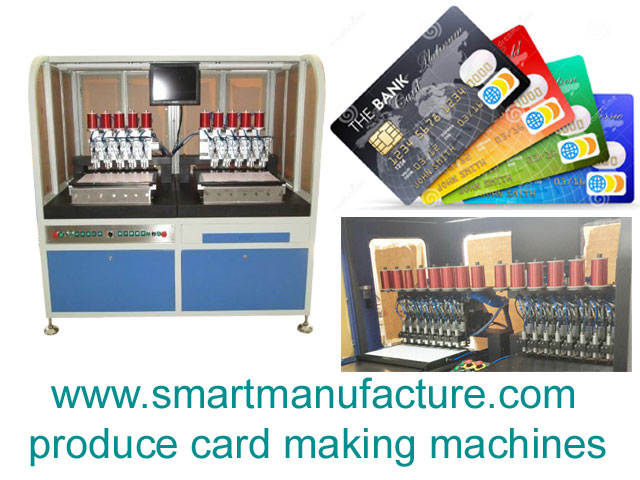

SMNCM-2 Contactless Smart Card Antenna Embedding Machine adopts the first-class servomotor multi-axial controllers and the first-class 70kHz ultrasonic generator. It features high precision and high stability. The machine has higher productivity based on single worktable with speedy embedding heads. It is one of the fastest antenna embedding machines at present in the world. It's full automatic antenna embedding machine to apply copper wire on plastic sheet.
1. Machine runs stable, wires are well-distributed.
2. Servo motor controls the location.
3. Designed for different plastic sizes and various shapes of antenna.
4. It is easy to load plastic sheet and easy to adjust.
5. PC control with software.
6. Machine can be made A and B two units wire embedding working tables, if two coil embedding working tables, we can choose A or B for production separately. If choose two working tables for production, finish A table, it automatic jump to B table for continue production.
| Embedding Material | PVC, ABS, PET, PETG, Teslin, Polycarbonate or other mixed plastic materials |
| Embedding Layout | 2*5, 3*7, 3*8 , 4*8, 5*5, 6*8, 7*8 or other size in your order |
| Embedding Copper Wire | 0.1mm-0.15mm |
Embedding Head
Working table | 1 -16 heads
1 working table, 2 working tables, 6 working tables |
| Embedding Size | A4, A3, A3+ or A2 |
| Coiling Space | minimum 0.2mm |
| Ultrasonic Generator | 1-16units 70KHz |
| Embedding Efficiency | 2000-6000pcs per hour depends your format and embedding heads quantity |
| Air Supply | 0.6MPa 55Liter/minute |
| Control Method | PLC, Touch Screen, Servo System |
| Voltage | 220V or 380V 50/60Hz |
| Power | 2.5KW |
| Servo Precision | X and Y = 0.0125mm |
| Packing Size | 2000mm*1150mm*1750mm |
| Net/Gross Weight | 550KGS/600KGS |
