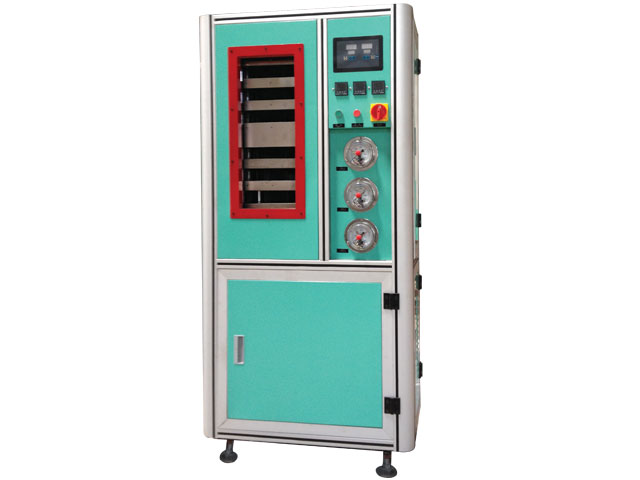

SMCLM-3C RFID Contactless Smart Card Laminating Machine is the high efficiency equipment was made for professional manufacturer to produce IC card, ID card and inlays.It is low wastage rate, easy to operate effectively.As the professional plastic laminator machine it also can satisfy the PVC card company and PVC card factory enough to produce the second Chinese generation Identification cards and good quality certificate cards, banking cards,one card solution for bus ,high way,social insurance card and so on. It with simple man-machine screen,easy to operate,with Italy international standard oil cylinder,balance pressure,low noise and small
vibration. Heating lamination plates are made of professional heating press plate mateiral, keep it never distortion.It is suitable for laminating and processing all kinds of plastic cards (special for contactless IC card laminating and processing). Precision producing, whole sealed and beautiful outlook, SMCLM-3C PVC Card Laminator is the best choice for the standard workshop.
Lamination Area | 310*230mm |
Lamination Opening | 3 openings for heating, 3 openings for cooling |
Pressure Method | oil hydraulic pressure system, 2units pressure module |
Control Method | MicroComputer |
Pressure Range | 0-16MPa ± 0.1MPa 0-20Tons |
Temperature Range | room temperature to 400 centigrade |
Heating Method | electric power (imported heating elements) 4units temperature module installed proportion integration differentiation program |
Cooling Method | automatic chiller inside machine ( environmental protection ) |
Working Efficiency | 1200-2300 cards per hour |
Input Voltage | 380V or 220V 50/60Hz |
Power | 6KW |
Power consumption | 2-3KW per hour |
Dimension | 1750mm*1050mm*1650mm |
Net/Gross Weight | 650KGS/700KGS |
