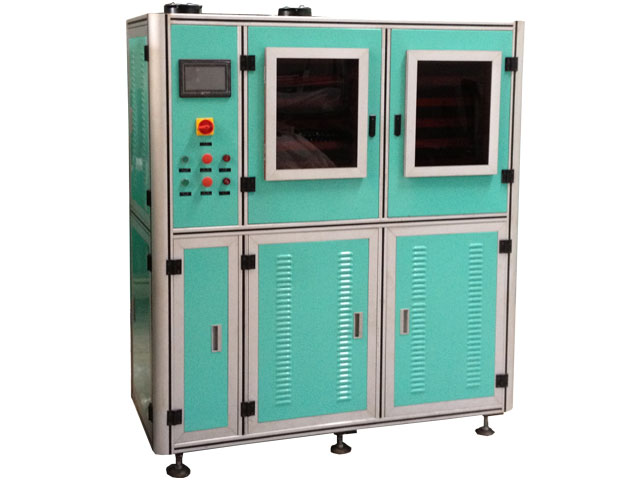

SMCLM-6B RFID Contactless Smart Card Laminator is the high efficiency equipment
was made for professional manufacturer to produce IC, ID inlays. It is low wastage rate , easy
to operate effectively. As the professional plastic laminator machine it also can satisfy the PVC
card company and PVC card factory enough to produce the second Chinese generation
Identification cards and good quality certificate cards, banking cards,one card solution for bus ,
high way, social insurance card and so on. It with simple man-machine screen,easy to operate,
with Italy international standard oil cylinder,balance pressure,low noise and small vibration.Heating
lamination plates are made of professional heating press plate mateiral, keep it never distortion.It is suitable for
laminating and processing all kinds of plastic cards (professional for contactless IC card lamination
and processing ). Precision producing,whole sealed and beautiful outlook,it is the best choice
for the standard workshop.
SMCLM-6B RFID Contactless Smart Card Laminator (European Standard)
| Lamination Area | usual 350*520mm or 420*520mm or any other size in your order |
| Lamination Opening | 6 openings for heating, 6 openings for cooling |
| Pressure Method | oil hydraulic pressure system, 2units pressure module |
| Control Method | PLC and Touch Screen |
| Pressure Range | 0-16MPa ± 0.1MPa 0-82Tons |
| Temperature Range | room temperature to 400 centigrade |
| Heating Method | electric power (imported heating elements) 7units temperature module installed proportion integration differentiation program |
| Cooling Method | automatic chiller inside machine ( environmental protection ) |
| Working Efficiency | 9450-11250 cards per hour
16200-19125 UV Printing Cards per hour |
| Input Voltage | 380V or 220V 50/60Hz |
| Power | 29KW |
| Power consumption | 2-4KW per hour |
| Dimension | 1770mm*860mm*2170mm |
| Net/Gross Weight | 3450KGS/3550KGS |
