SMC--1 chiller is our specially cooling machine which used to connect with our Laminating Machines, this chiller will automatic keep inside water cold and run water into laminating machine and back to inside water tank.

     There is compressor automatic works by temperature sensor, and there is temperature meter to control high temperature and low temperature, all the paranameters can be adjusted.

     Good setting of chiller is 10 degrees to 25 degrees.

     Safety: less phase, electricity leakage, over power load , high pressure , low pressure, all these condition, machine automatic off.

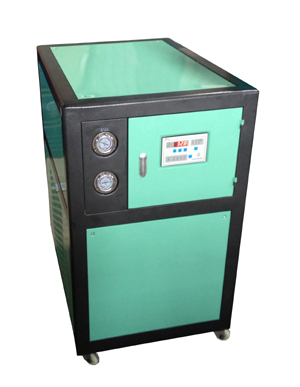

SMC-1 Chiller for Laminating Machine

Power Input: 380V / 220V    50-60Hz

Room Temperauter: less than 45 degrees

Refrigerant: R22 (404A)

Flow Control : Capillary

Water Tank: 40Liters

Noise Level:  less than 50 DB(A)

Safety: less phase, electricity leakage,  over power load , high pressure , low pressure, all these condition, machine automatic off.

Size: 1450mm*850mm*1300mm

Weight: 300KGS
