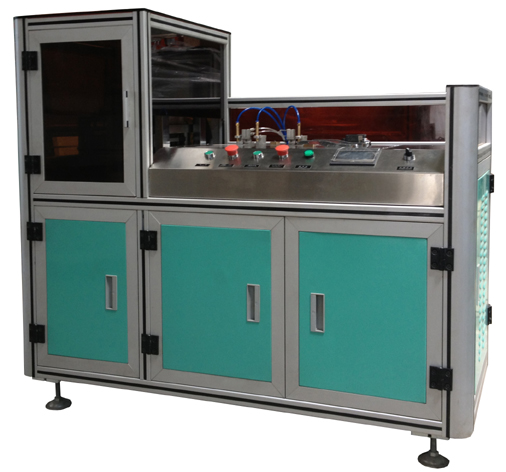

SMCPM-A4A Card Punching Machine
1.High sensitivity photoelectric sensors read the printing marks, automatic feeding sheets by servo motor, high precision.
2.Electric style cutter for cutting motivity, dispense with hydraulic pressure, saving energy and cleanlily, stable motivity.
3.Automatic adjust sheet position, automatic transfer the punched cards to card stacker, automatic push up the cards, easy to take out the cards.
4.Touch screen frame for man operating, perfect parameter easy and conveniency.
5.Automatic running PLC program controlling, when it make a mistake will alarm and stop operating.
| Suitable Material | Plastic and Paper like Teslin, PC, PVC, PET, PETG, ABS and so on |
| Punching Layout | 2*2, 2*3, 2*4, 2*5, 2*6, 2*7
|
| Punching Die | 2 dies |
| Control Method | PLC and Touch Screen and Servo Motor |
| Cylinder Travel | 18mm |
| Air Source | 0.6Mpa |
| Air Consumption | 100L/minute |
| Power Source | 380V or 220V or 110V 50/60Hz |
| Oil Tank | 120L hydraulic oil |
| Work Efficiency | 6000pcs standard card per hour |
| Dimension | 1560mm*750mm*1500mm |
| Net/Gross Weight | 770KGS/810KGS |
